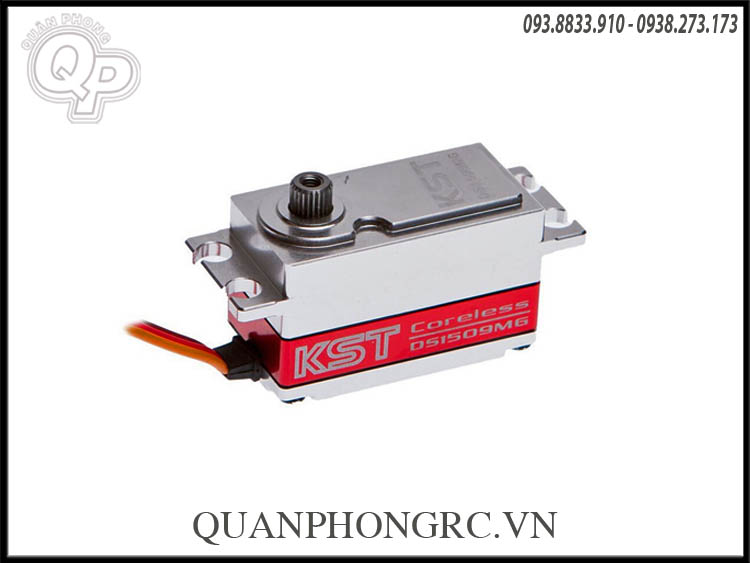

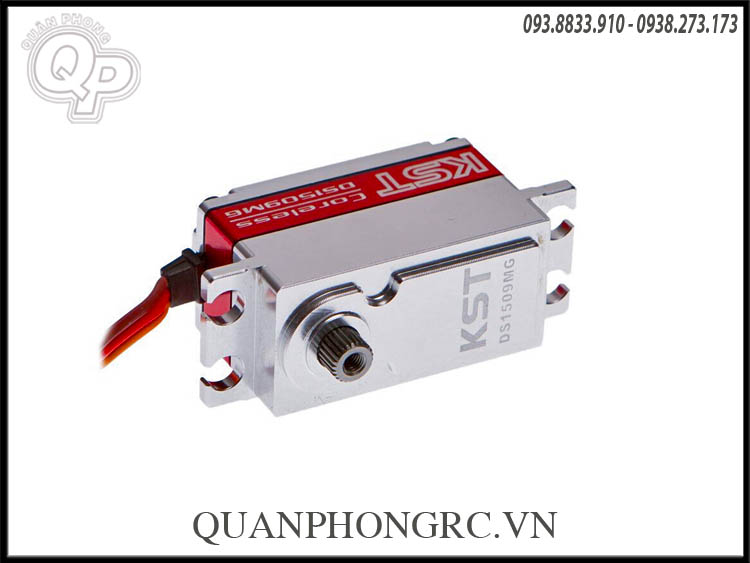

KST DS1509MG Digital "Low-Profile" Servo 20mm 12.8kg

Features

• Extreme torque and Excellent speed
• CNC aluminium case
• Two Ball Bearings
• Low Profile servo

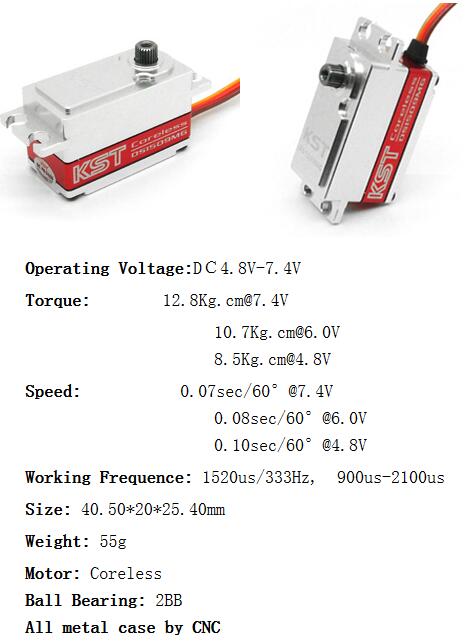

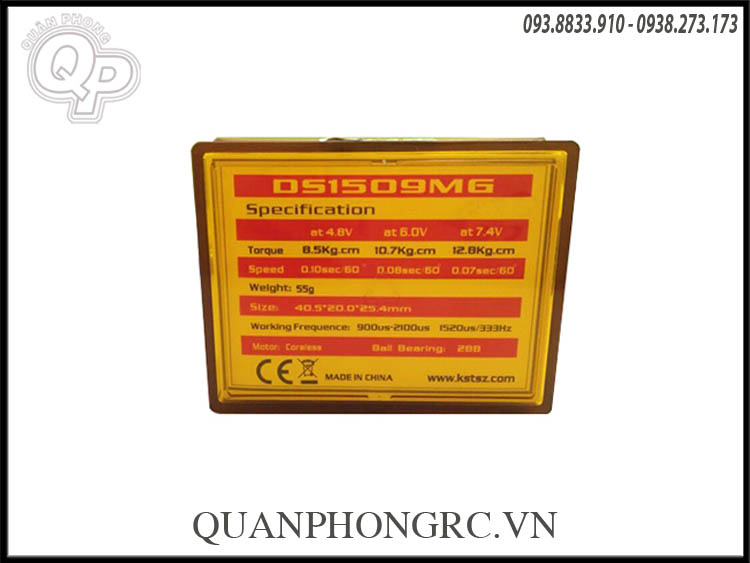

Specification

• Item: DS1509MG Coreless Servo
• Operating Voltage: DC4.8V-7.4V

• Size: 40.50*20*25.4mm

• Torque: 12.8kg.cm@7.4V  10.7kg.cm@6.0V  8.5kg.com@4.8V

• Speed: 0.07sec/60°@7.4V  0.08sec/60°@6.0V   0.10sec/60°@4.8V

• Weight: 55g

• Working Frequency: 1520us/333Hz,  900us-2100us

• Motor: Coreless

• Ball Bearing: 2BB
• Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm


Size

Package Including

• 1 * DS1509MG Coreless Digital Servo
• 1 * Accessories

Download

• DS1509MG Technical Specification
