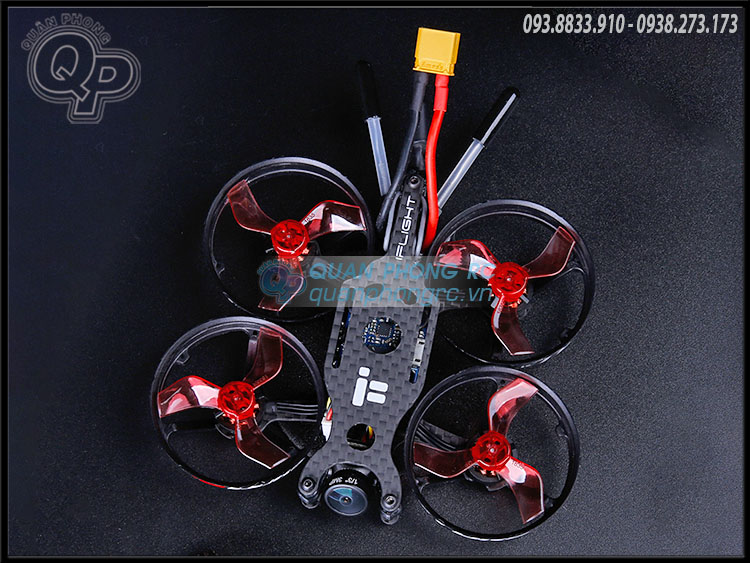

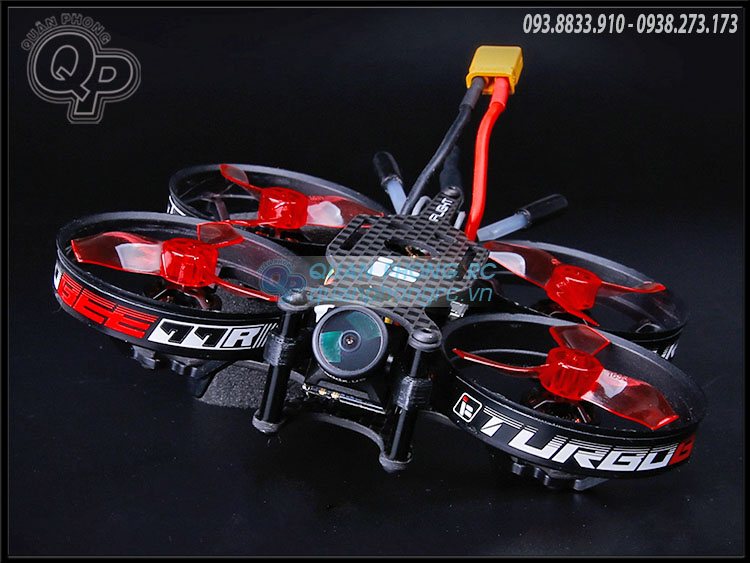

iFlight TurboBee 77R Micro FPV Race Whoop with Frsky mini XM+

TurboBee 77R Micro FPV Race Whoop:

- Frame Wheelbase: 77mm

- Bottom plate thickness: 1.5mm

- Top board thickness: 1mm

- Flight control pitch: 16x16mm 20x20mm

- Fpv cam spacing: 19mm

- Top and bottom plate spacing: 22mm (aluminum column height

- Build Weight: 55g

- SucceX Micro 16x16 Tower 2-3S

- iFlight 1103 motors (1.5mm shaft)

- Caddx.us Turbo Eos2 Camera

- Gemfan 1635 40mm 3 blades 1.5mm shaft propeller

- iFlight Prop Guards 40mm

SucceX Mirco F4 Flight Tower System 16x16mm

SucceX F4 Flight Controller

-STM32F411

-Input voltage 2-4S LIPO

-Gyro: MPU6000

-2x UART ports

-4x motor outputs

-OSD inbuilt

-No Blackbox FLASH

-BEC 5V 2A Cont.

-Size: 21mm*21mm

-Mounting holes: 16*16

-Weight: 2.5g

-BF target: MATEKF411

SucceX Mirco 12A Brushless ESC

-Firmware: BlheliS

-Input voltage : 2-3S LIPO

-Continuous current: 12A

-MCU: BB21F16G

-BEC: None

-ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.

-Size: 23mm*21mm

-Mounting hole 16*16mm

-Weight: 2.7g

SucceX Mirco VTX-Power: PIT/25/100/200mW

-Antenna interface: IPEX (UFL)

-Telemetry: IRC Tramp

-Size: 17mm*27mm

-Mounting holes: 16*16mm

-Weight: 1.6g

VTX control implementation:

-VTX can be conveniently set up in your OSD.

Receivers available currently:

-Frsky XM+

-Flysky FS-A8S

-Futaba FT4X

-SDMX RM601X

-Frsky R-XSR

Package Included:

1 x TurboBee 77R FPV Whoop BNF
