Amass XT90S Anti Spark Connector Female - Jack XT90S Cái Chống Tia Lửa Điện (Pin)

Amass XT90S Anti Spark Connector Female - Jack XT90S Cái Chống Tia Lửa Điện (Pin)

Almost all FPV are using 12S even more Li-po battery for Power System.the most annoying problems is the Sparking during the connect,the sparking will damage the connector! this XT90-S connector from Amass will resolve the problem for you!
100% New AMASS Patented Anti-Spark Design!

Reusable Conector end design for times insert and take off from the Enclosure.

New style design with the shining and safety construction.

Non-slip insulator, easy to connect. Clear "+" and "-" mark, avoid the mistake. Accurate size, perfect connection prevent any inside pollution.

Advanced caseting technology,and integrated with banana plugs fully and closely.

The groove slot design make the connection stronger and avoid any mistake when you use it.

2U thickness gold plating, we use the large flow-line design banana plug which have a larger contact area, although 3.5mm banana plugs, but can be sustained a constant current 90A,120A current peak.

Material of Housing: Heat-resistant nylon material(high temperature resistance to 240℃) Material of connector : 2U thickness Gold plated copper

Stable current: 90A /Max. 120A

Temperature resistant：-30℃ ~ 240℃

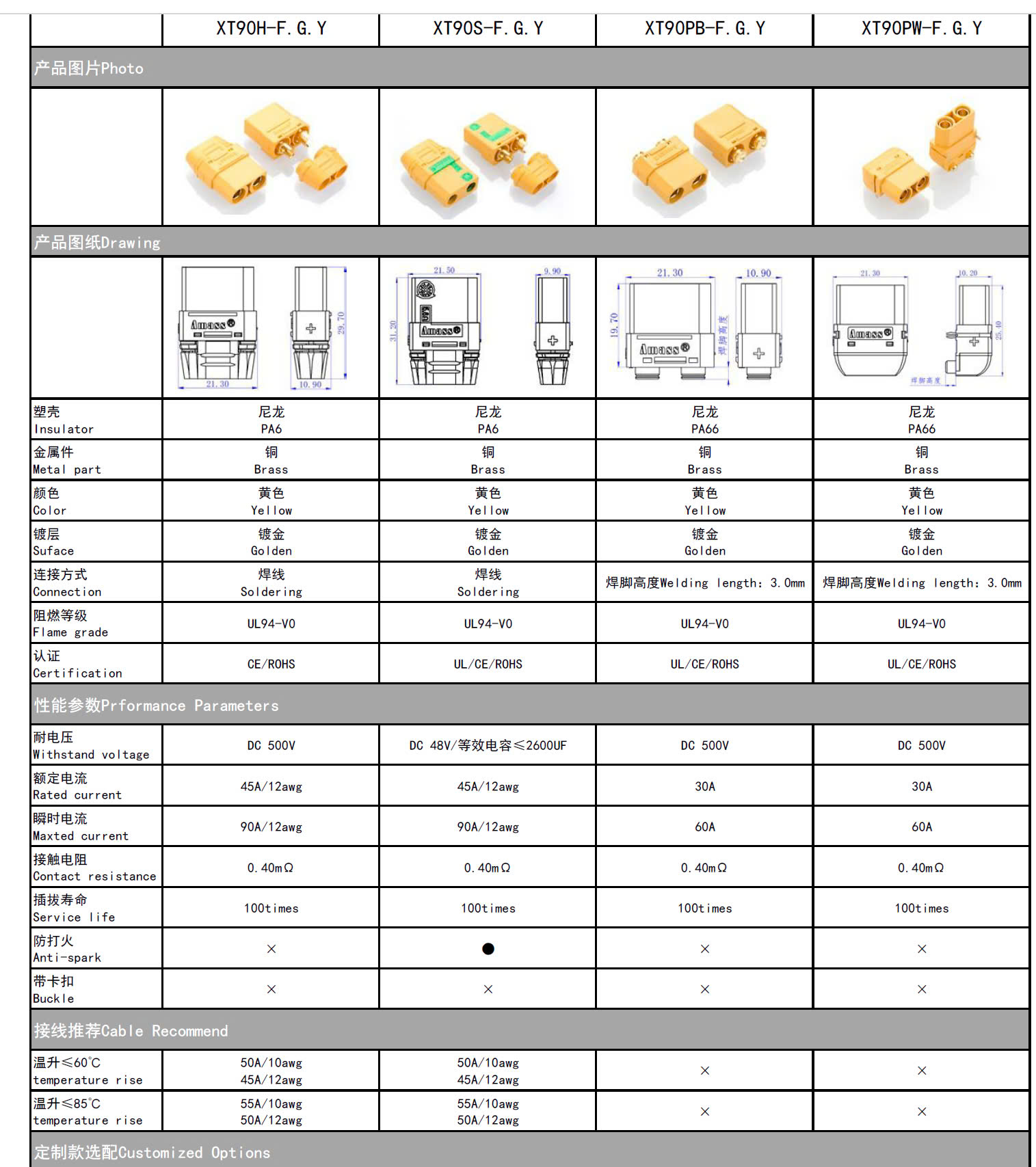

Compatible with AMASS XT90 connector

Product id: XT90-S
