BETAFPV Vỉ Sạc BT2.0 PH2.0 6 Ports 1S Battery Charger

BETAFPV Vỉ Sạc BT2.0 PH2.0 6 Ports 1S Battery Charger

This new 6 ports 1S battery charger supports PH2.0 and BT2.0 at the same time. Moreover, the charging is faster when using 30W adapter (not included). Compact, fast-charging, and portable, choosing a 1S battery charger that best suits your needs will no longer be difficult with this 6 Ports 1S charger & adapter.

Bullet Point

• With BT2.0/PH2.0 two types of battery ports, the charger allows charging BT2.0 and PH2.0 battery at the same time.
• By supporting multi-charging protocols including PD3.0/QC3.0/BC1.2, every port's charging current can reach 1A, which makes charging faster.


SPECIFICATION

• Item: 6 Ports 1S Battery Charger

• Input connector: Type-C
• Input voltage range: 5-12V
• Max charging current: 1A (Single-port)
• Support battery connector: BT2.0&PH2.0

• Battery Type：LiHV 4.35V

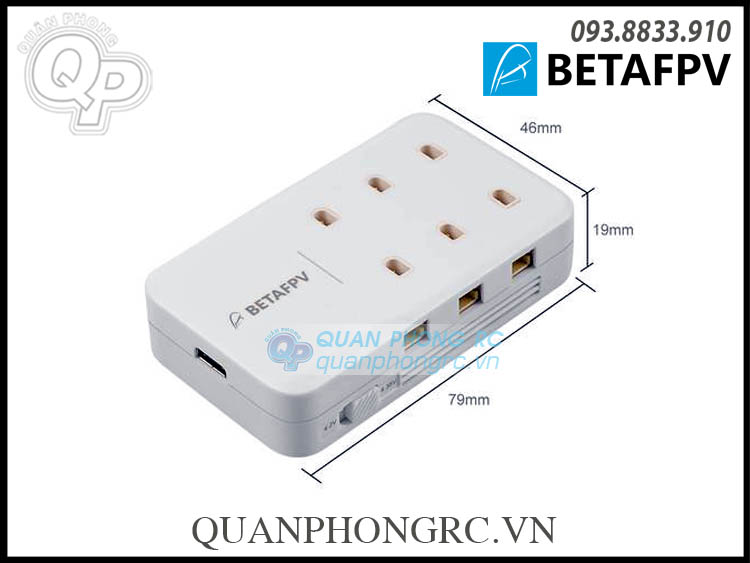

• Dimensions：79*46*19mm

Button Function

The function of the button is to switch the charge voltage: 4.35V.

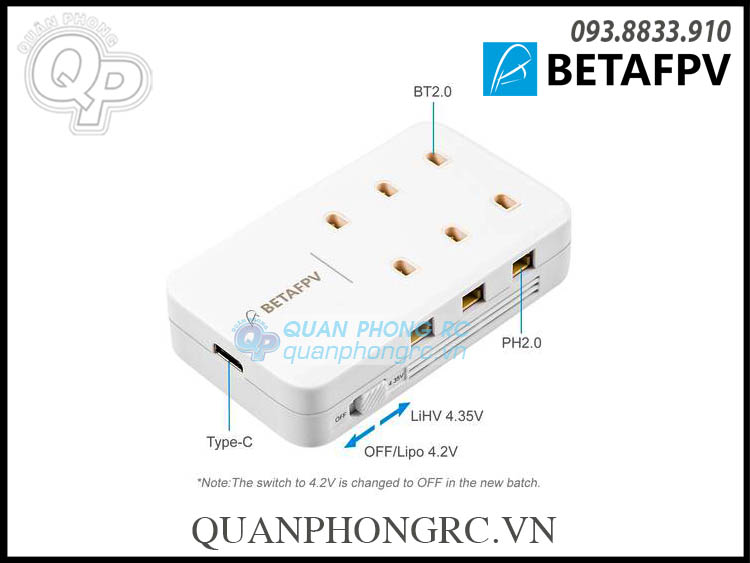

The new batches' switch left side changes the "4.2V" to "OFF". See in the picture above.

Indicator Light Status

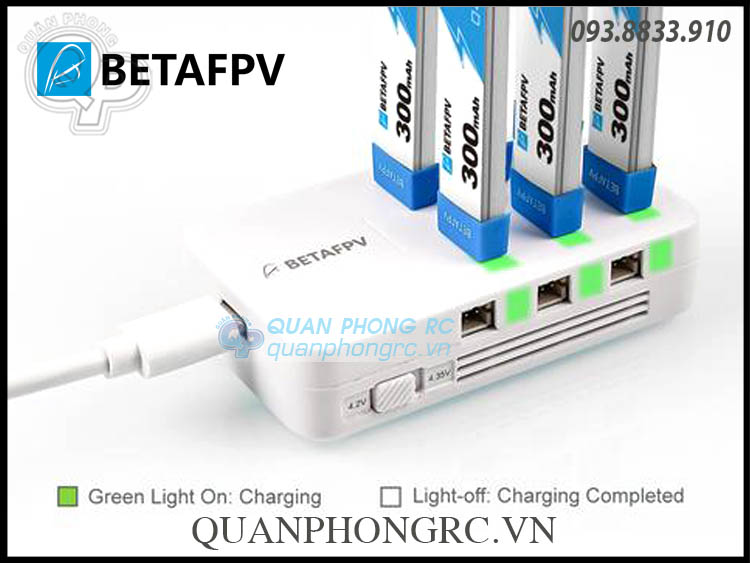

LED lights indicate when charging status of each battery. Greenlight indicates charging, light off when fully charged.

Note: If the indicator light is off when there is no battery in the output port, indicating that this line is faulty and cannot be used.

FAQ

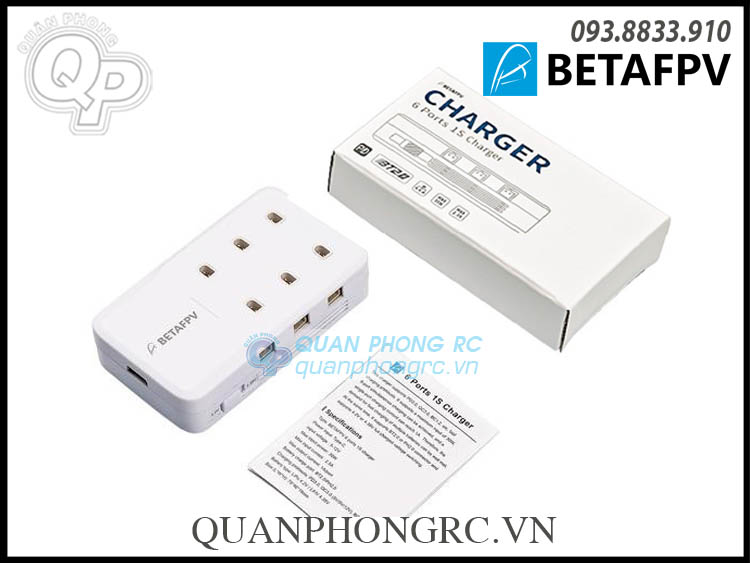

PACKAGE

• 1 * 6 Ports 1S Battery Charger
• 1 * User manual
