Chống VTX BETAFPV Pavo20 Brushless Whoop HD VTX Bracket

Chống VTX BETAFPV Pavo20 Brushless Whoop HD VTX Bracket

Bullet Point

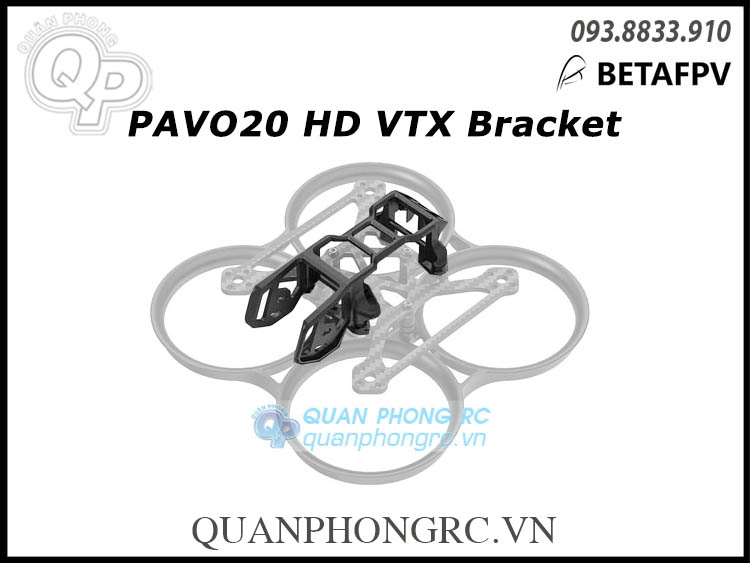

Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation. The original transmission antenna can be directly mounted on the frame kit.

Compatibility with Popular HD VTX

Pavo20 supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Precise Security for HD VTX

The camera side panel and 4-point fixation hole design effectively safeguard the lens while allowing for easy installation of ND filters, guaranteeing uncompromised lens protection, and eliminating any concerns about angle deviation after intense flights. Insert copper nut design, employing an integrated injection molding technique, eliminating the hassle of adjusting screw tightness and streamlining the installation. Open-ended battery strap slot that accommodates a wide range of batteries*. Side-limitation slots ensure secure and stable battery placement, preventing any potential displacement during flights.

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, facilitating effortless installation, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images. At the same time, it can be adapted to the Pavo Pico.

Recommend Parts

• FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1

• Motor: 1103 | 8000kv/8500kv/11000kv

• Propellers: GF 2015-2B, GF 2020-4B

• Battery: 2S~4S 450mAh~650mAh
• VTX: DJI O3, Caddx Vista, RunCam Link

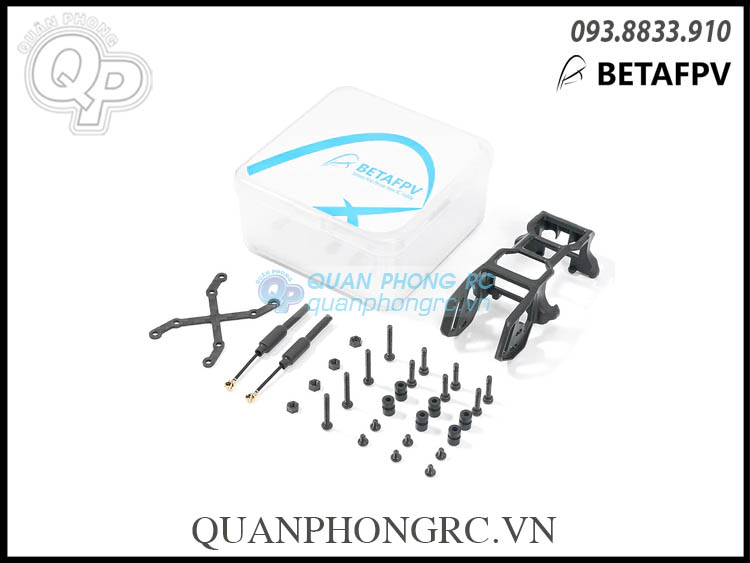

Package

• Item: Pavo20 Brushless Whoop HD VTX Bracket
• 1 * Pavo20 VTX Bracket (Black, Blue, Transparent Grey random)

• 1 * 20*20mm VTX Mounting Plate
• 2 * 5.8g Antenna
• 4 * M2 Nut
• 6 * Rubber Damper
• 6 * M2*10 Screws
• 6 * M2*3 Screws
• 4 * M2*15 Screws

Full Frame Kit:

https://quanphongrc.vn/ct/may-bay-dieu-khien/5398/betafpv-pavo20-brushless-whoop-frame-kit-w-hd-vtx-bracket.html

PNP Combo:

https://quanphongrc.vn/ct/may-bay-dieu-khien/5441/betafpv-pavo20-brushless-whoop-quadcopter-elrs-2-4g-khong-gom-cam-vtx-pin.html
