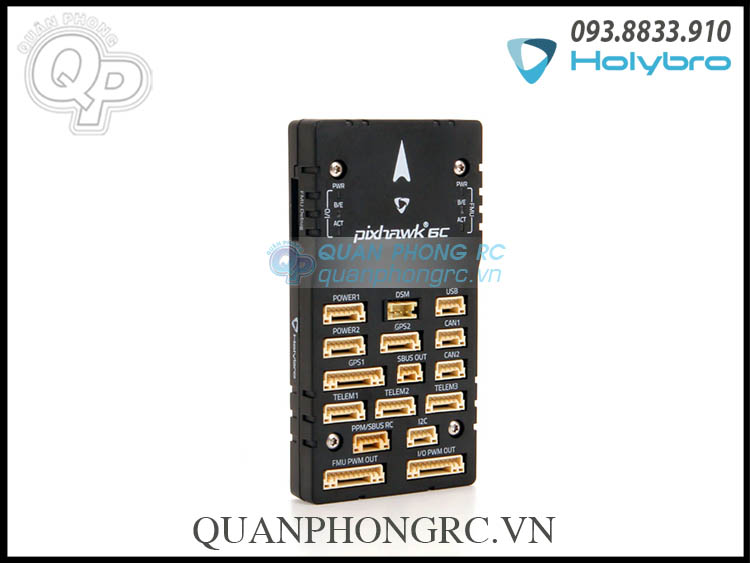

Pixhawk 6C Plastic + PM02 +M10 GPS Flight Controller Set 20232
The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points:
- High performance H7 Processor with clock speed up to 480 MHz
- New cost-effective design with low-profile form factor
- Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®
- Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Note:
- M10 GPS Requires PX4 1.14 & ArduPilot 4.3 or newer.
- Power module comparison chart
Specification
Processors & Sensors
- FMU Processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
- IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611
Electrical data
- Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
- Current Ratings:
- Telem1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
Mechanical data
- Dimensions: 84.8 * 44 * 12.4 mm
- Weight (Plastic Case) : 34.6g
For other technical Information, please visit https://docs.holybro.com/.
Latest info on Supported Firmware.

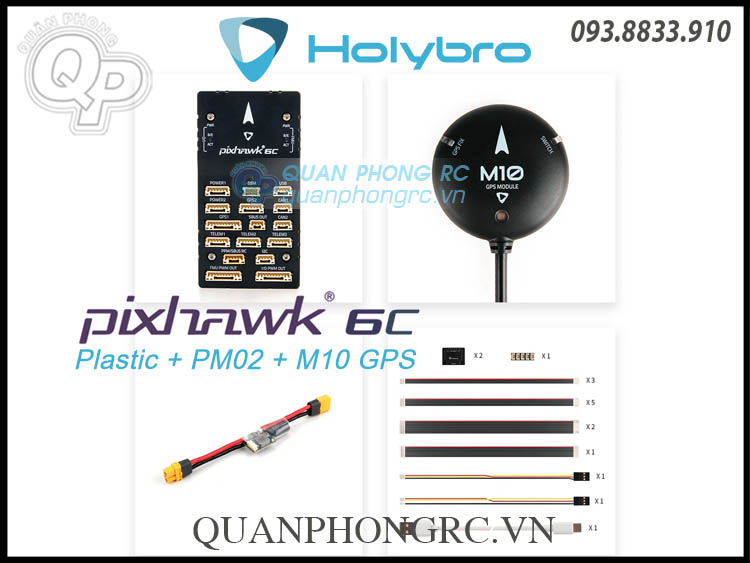

SKU 20232 Includes:

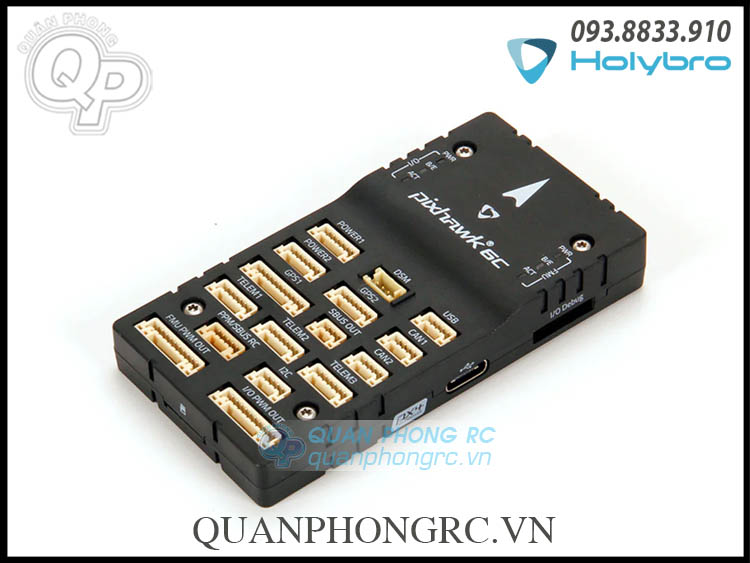

- Pixhawk 6C Flight Controller

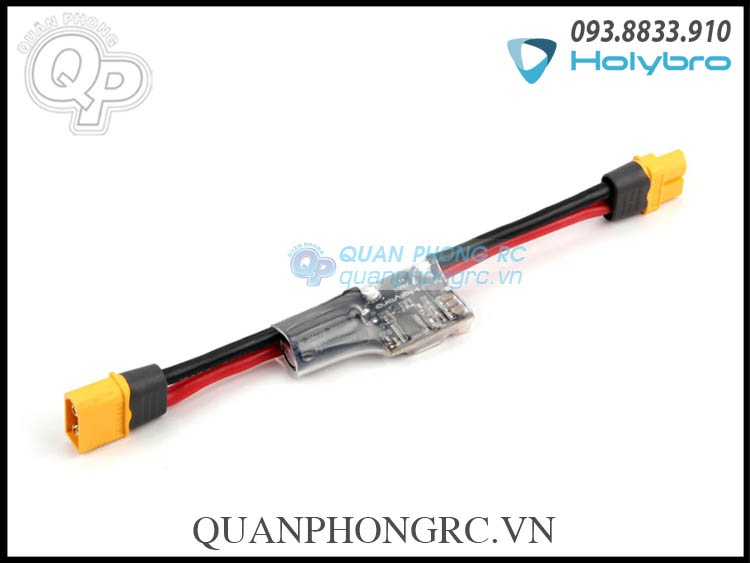

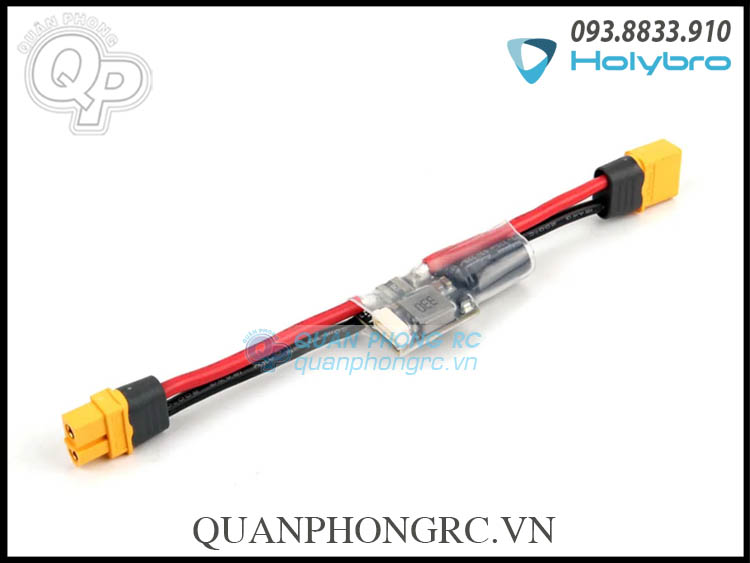

- Power Module: PM02 V3 12S

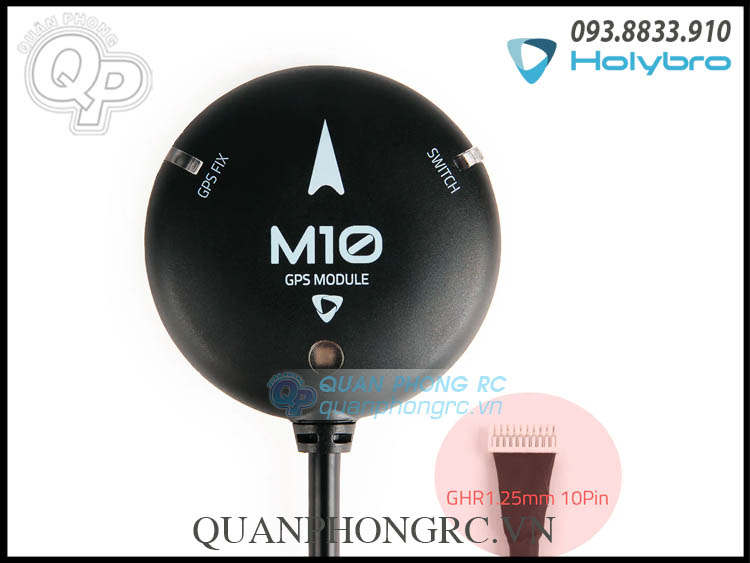

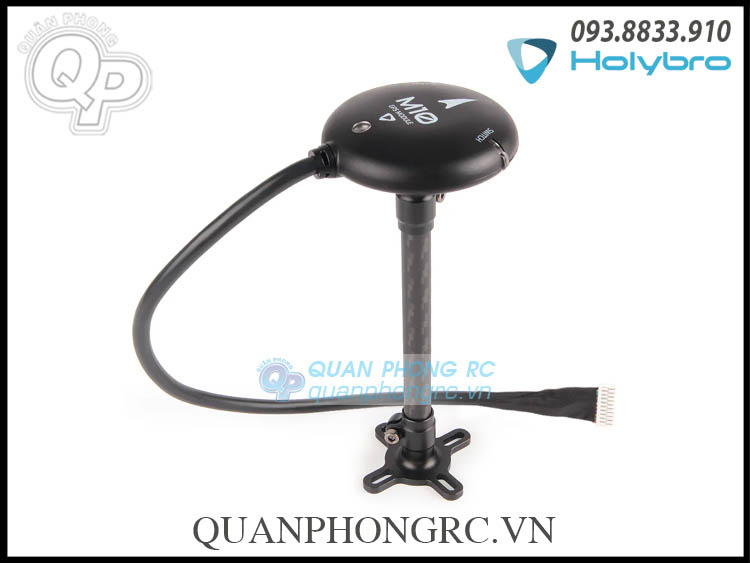

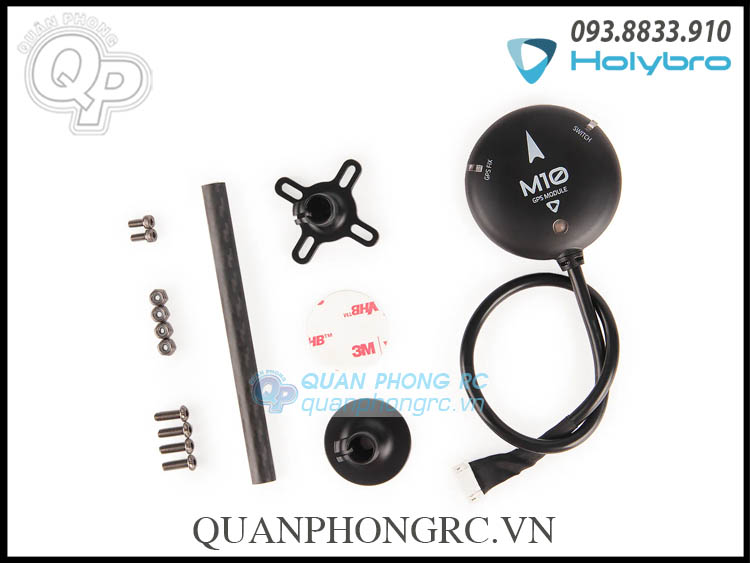

- GPS: M10

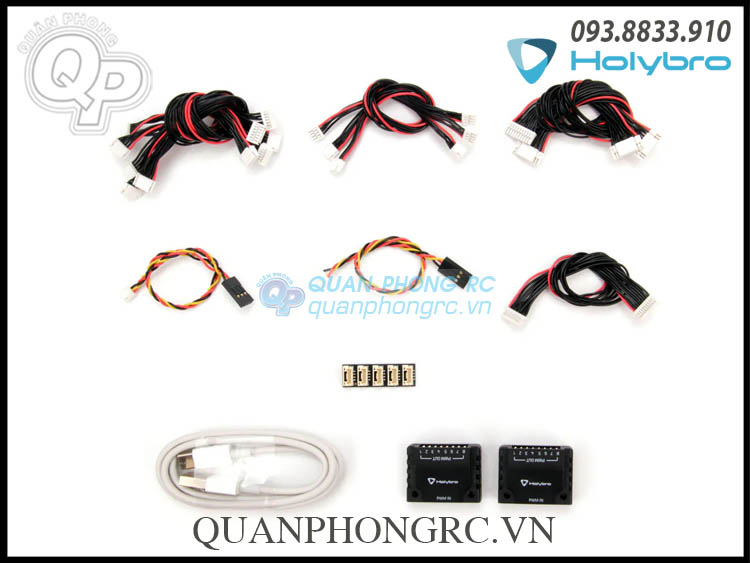

- Cable Set
