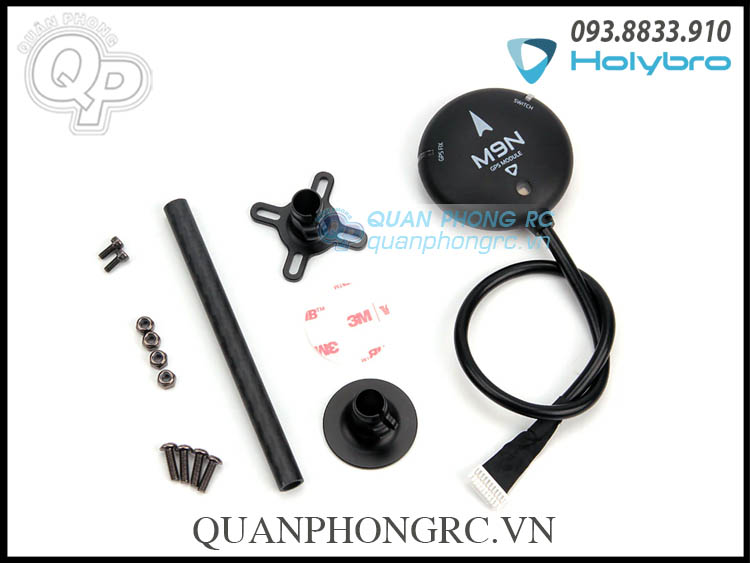

Pixhawk 6X (ICM-45686) Flight Controller Standard V2A M9N GPS 20302

Quad Combo Box (36)	Linh Kiện Quad Combo (271)	Kit Quad (139)
Cánh quạt - Bảo Vệ Cánh Quạt (253)	Linh Kiện (60)	Mạch Điều Khiển - GPS - UBEC - PDB - Còi báo -Tụ (234)
Motor - Phụ Kiện (378)	ESC (Điều Tốc) (41)

Giá : 8.220.000 VND

Số lượng

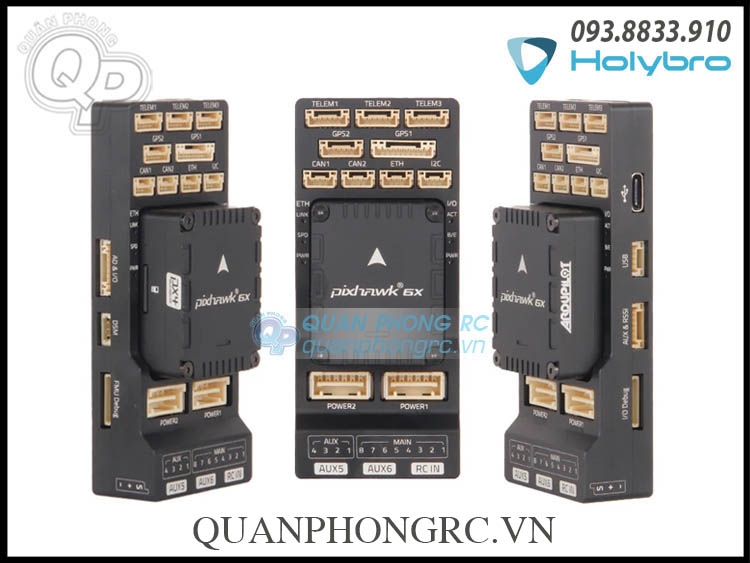

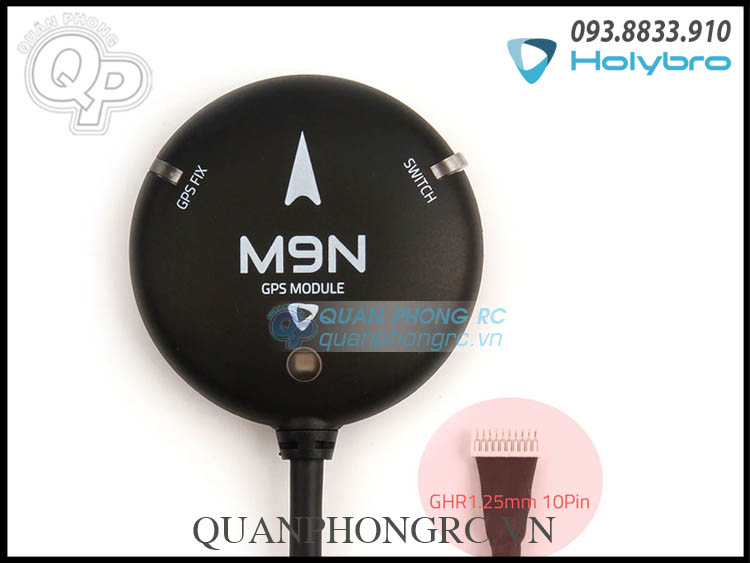

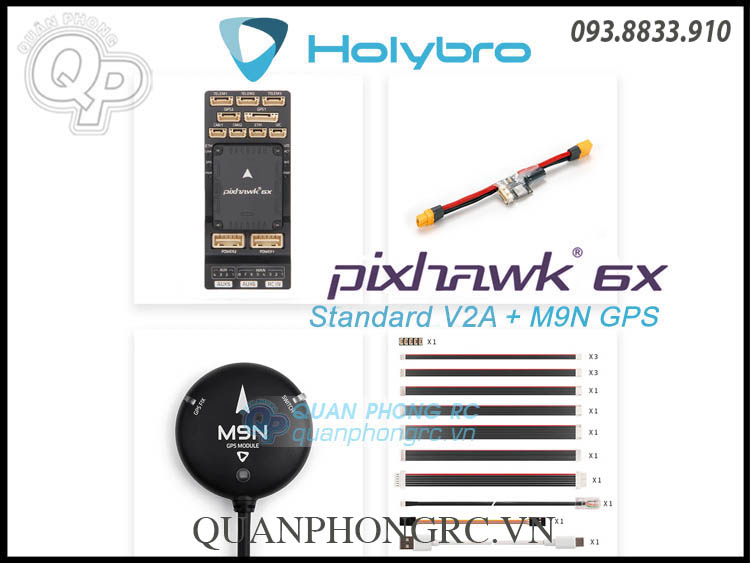

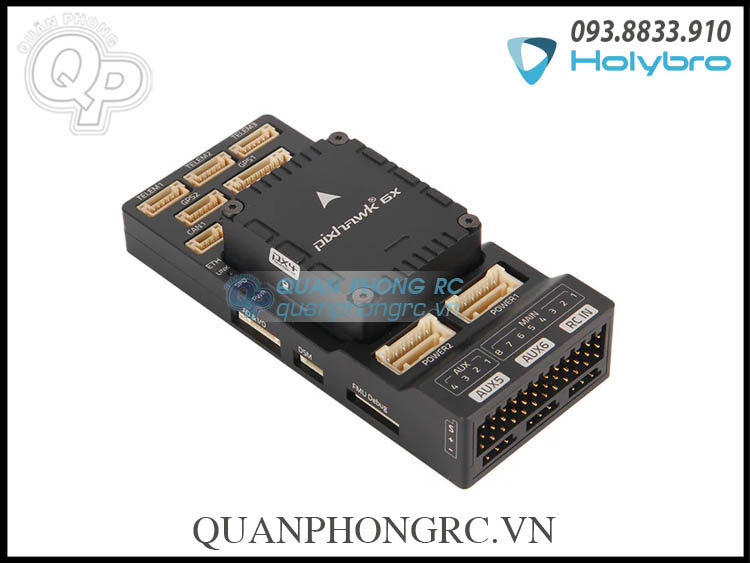

Pixhawk 6X (ICM-45686) Flight Controller Standard V2A M9N GPS 20302

Now shipping Pixhawk 6X REV 8, it has 3x ICM-45686 IMU with BalancedGyro™ Technology

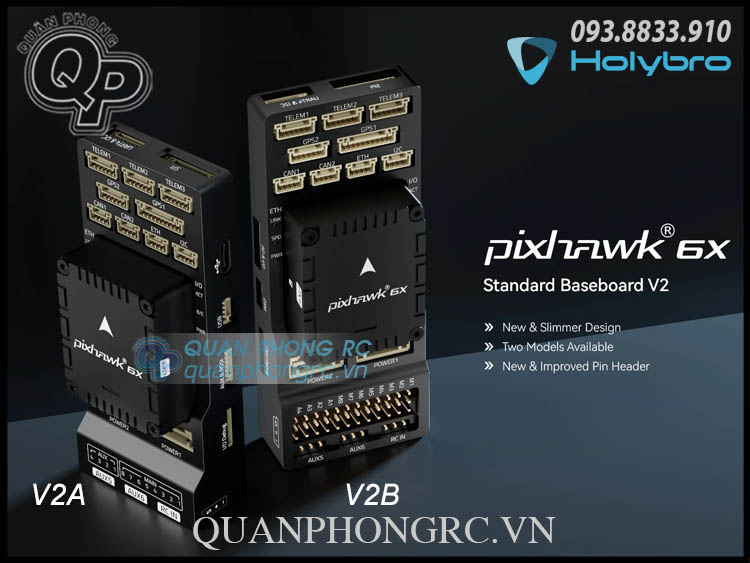

The standard baseboard has been updated to v2. See the List of Changes Between V1 and V2 for more detail

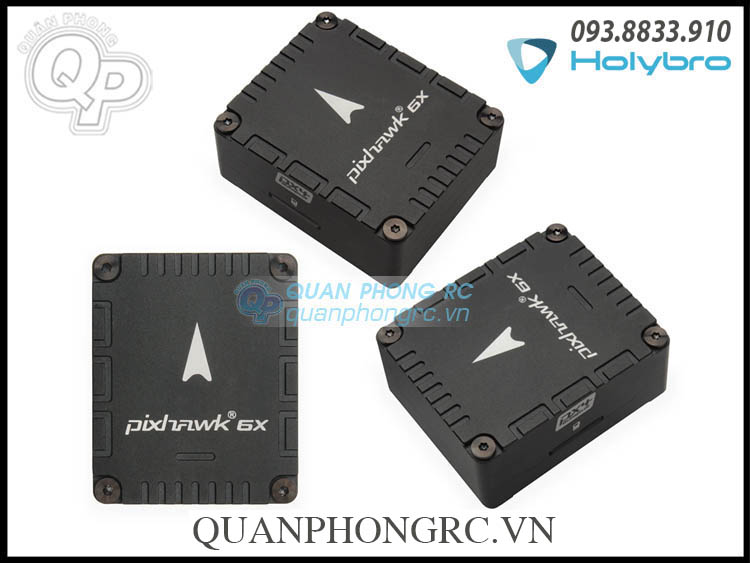

The Pixhawk® 6X is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6X Open Standard and the Pixhawk® Autopilot Bus Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

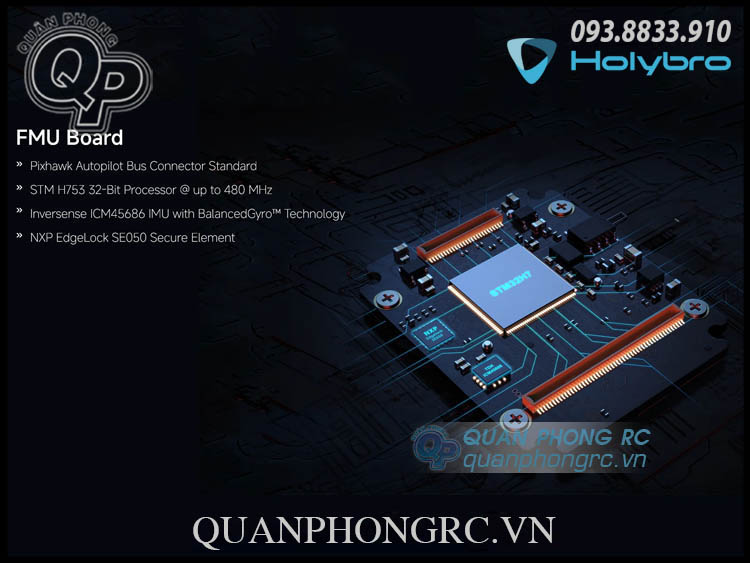

The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

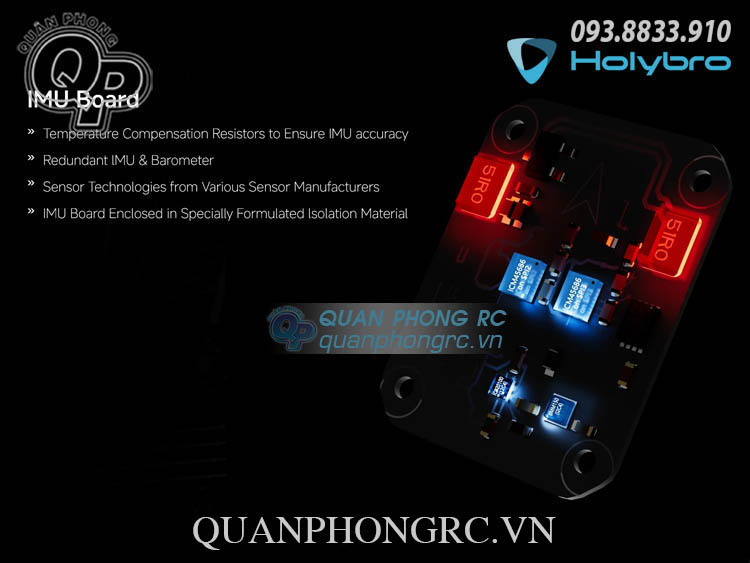

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.

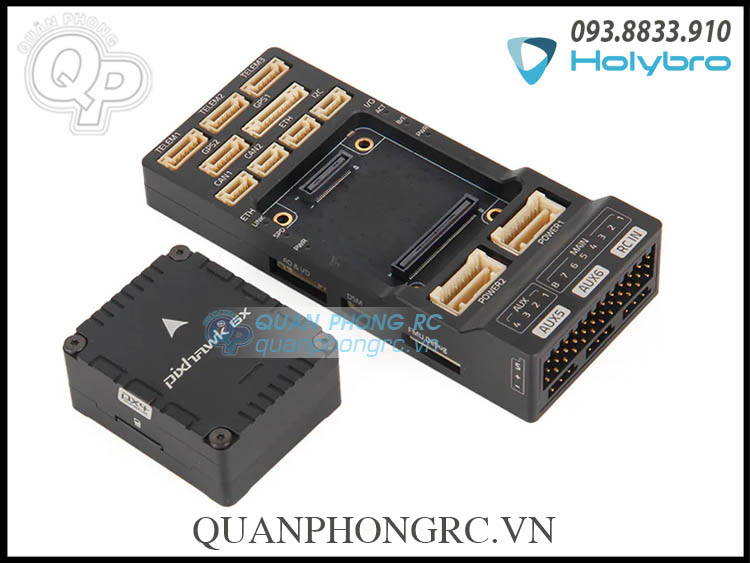

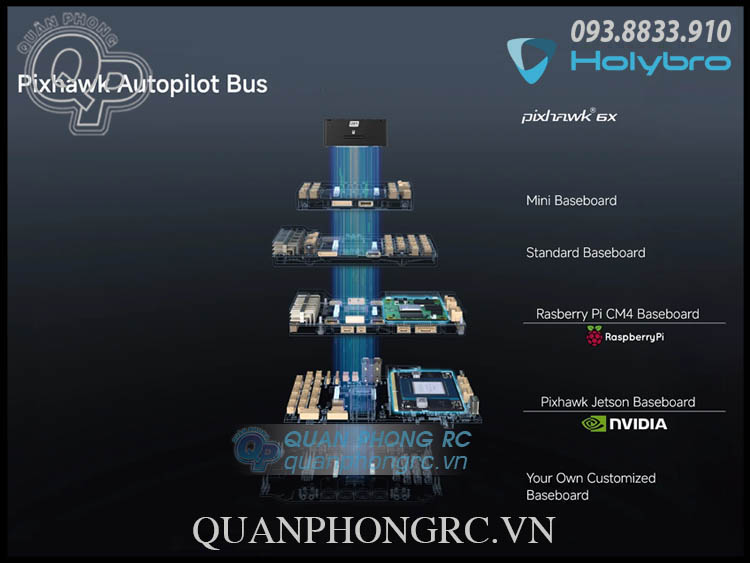

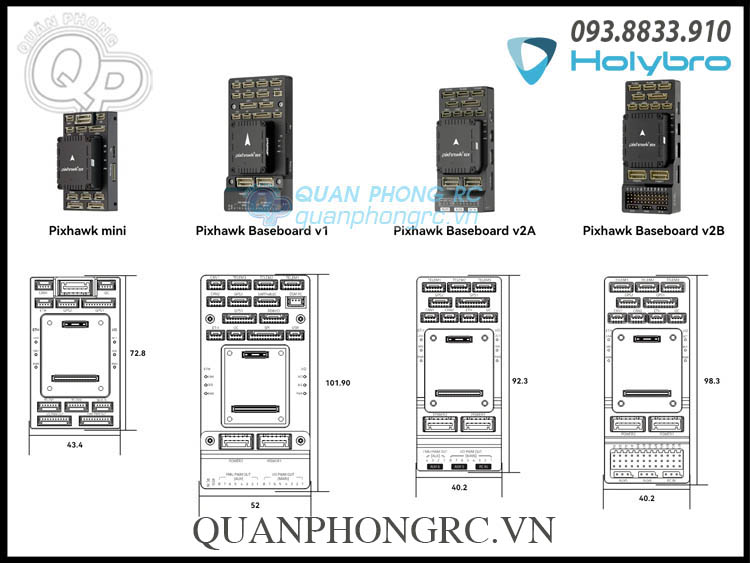

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Holybro offers the Pixhawk Baseboard and the Pixhawk Mini-Baseboard, each with different form factor and interfaces.

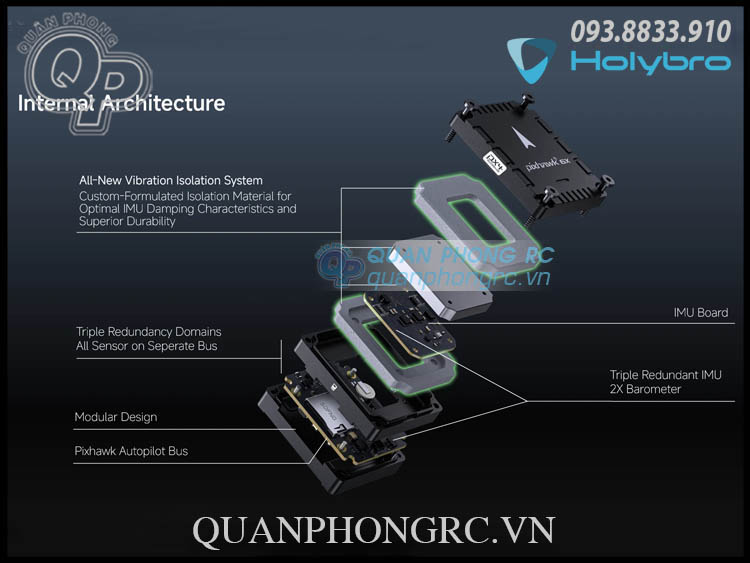

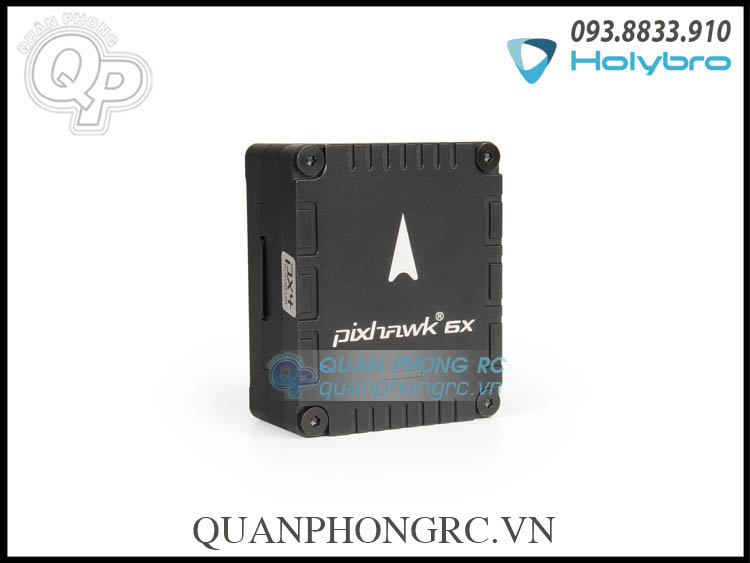

All new Vibration Isolation Design

This new vibration isolation design uses the same custom-formulated durable isolation material as the Pixhawk 6X Pro, instead of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drone

Note:

The Rev 8 Version is supported in the PX4 1.14.3 release or later, as well as the Ardupilot 4.5.0 stable release or later. It ships with PX4 firmware by default. User can also use Ardupilot firmware by flashing the firmware via Mission Planner or QGroundControl.

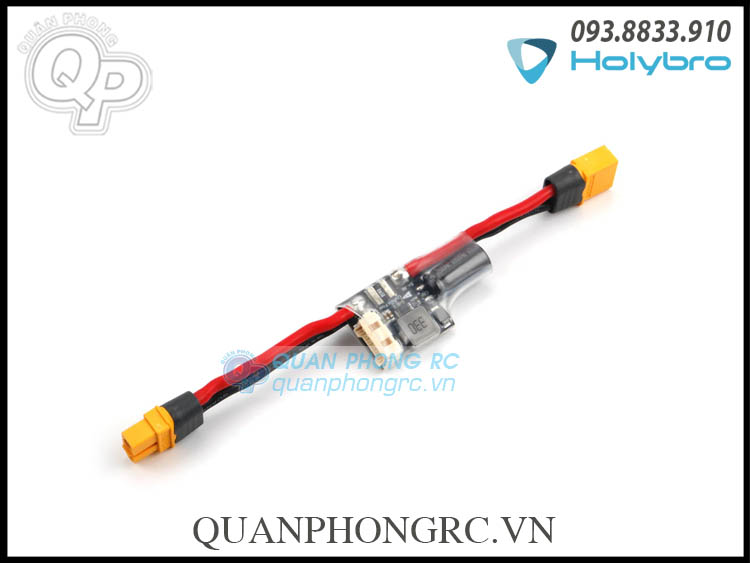

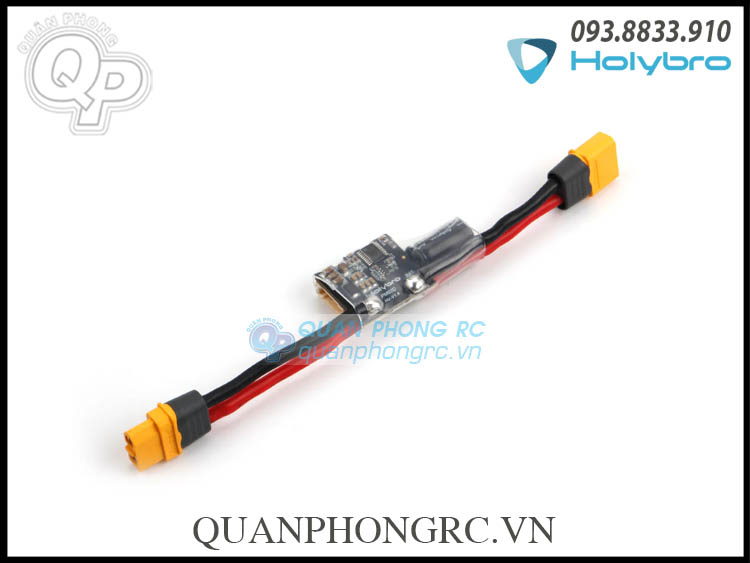

Power module comparison chart

Specification

Processors & Sensors

FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors (Shipping Currently, Rev8)
- Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
- Barometer: ICP20100 & BMP388
- Mag: BMM150
