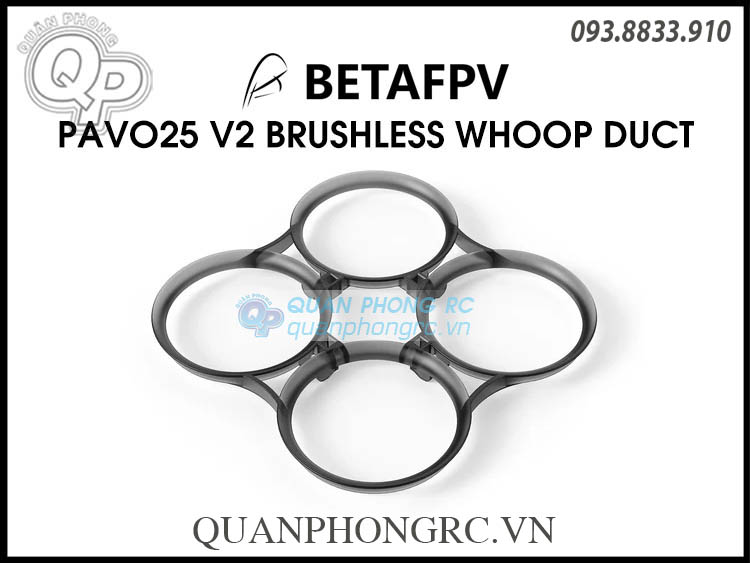

BETAFPV Pavo25 V2 Brushless Whoop Duct

BETAFPV Pavo25 V2 Brushless Whoop Duct (Không Frame, Không Bracket)

Pavo25 V2 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5" cinewhoops.

Bullet Point

• Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.
• The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.

• Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
• The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
• The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

Specification

• Item: Pavo25 V2 Brushless Whoop Duct
• Wheelbase: 112mm

• Whoop Duct: PC injection-molded translucent gray

• Whoop Duct Diameter: 65.5mm

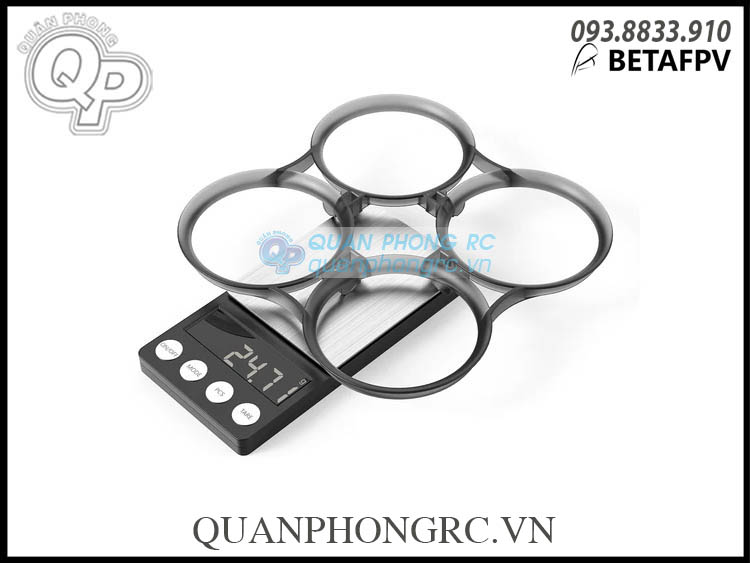

• Weight: 25g

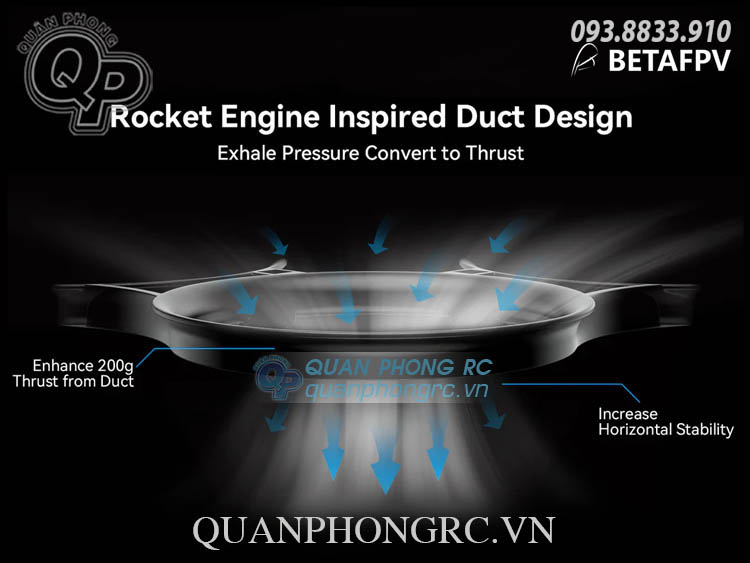

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 200g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo25 V2 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.

Recommend Parts

• FC: F722 35A AIO V2

• Motor: 1505 4600KV Brushless Motor

• Propellers: Gemfan D63 3-Blade Propellers 1.5mm Shaft

• Battery: LAVA Series 4S 850mAh LiPo Battery

• Battery Strap: Pavo Series Battery Strap(2PCS)

• Filter: BETAFPV ND Filter for DJI O3 Camera

• VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

Package

Item: Pavo25 V2 Brushless Whoop Duct

• 1 * Whoop Duct
• 1 * Service Card
