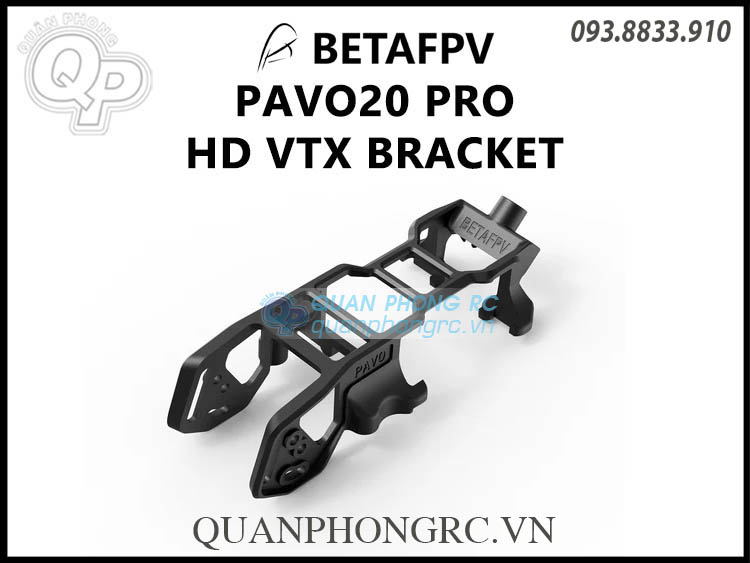

Chống VTX BETAFPV O3 Pavo20 Pro Brushless Whoop HD VTX Bracket

Chống VTX BETAFPV Pavo20 Pro Brushless Whoop HD VTX Bracket

Bullet Point

• Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance.
• Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct, coupled with LAVA Series 1104 Brushless Motors, enabling Pavo20 Pro up to 6'40'' flight time.
• Add 2 new cam fixed holes for the wide-angle mode shooting. The cam side panel protects the lens from effective harm, eliminating any concerns about angle deviation after intense flights while allowing for easy vertical installation of ND filters.
• Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation with only 8 screws. The antenna holder is tailored to the contours of the antenna's form and installation, ensuring easy assembly and secure retention.
• Featured the Pavo Series' Classic Rubber Damper Design, delivers a consistently smooth, HD image.
• An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries.

Specification

• Item: Pavo20 Pro Brushless Whoop HD VTX Bracket

• Material: PA12/PP

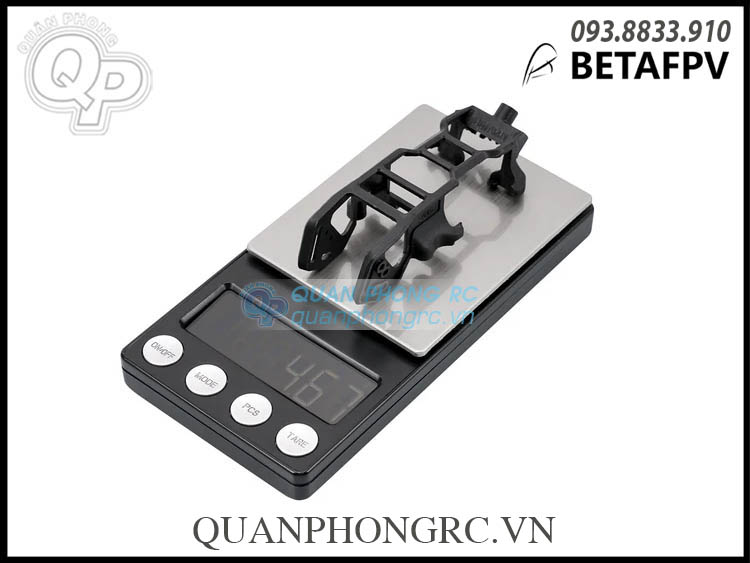

• Weight: 4.6g

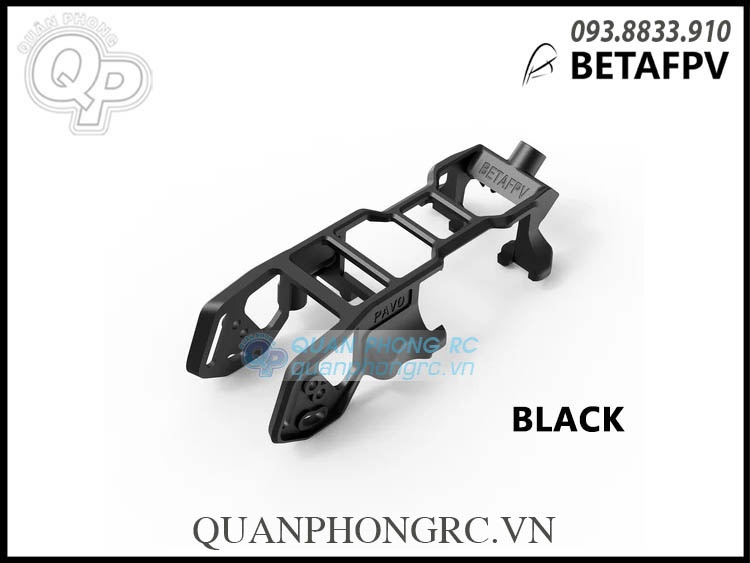

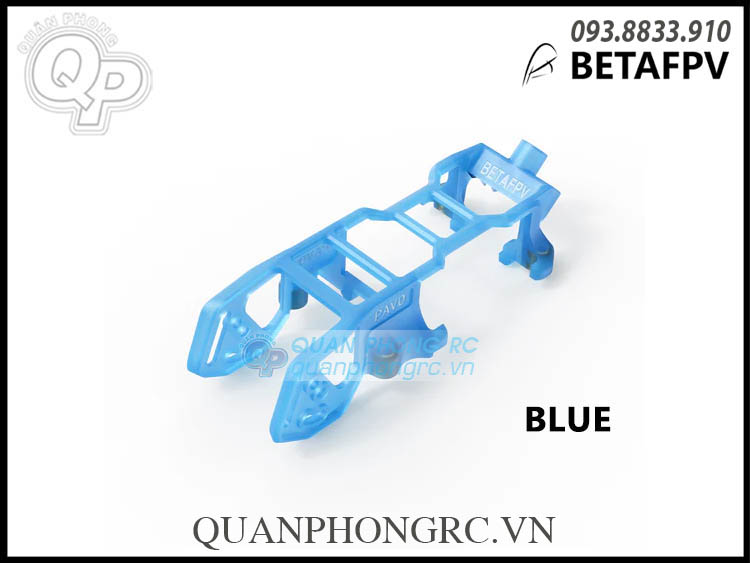

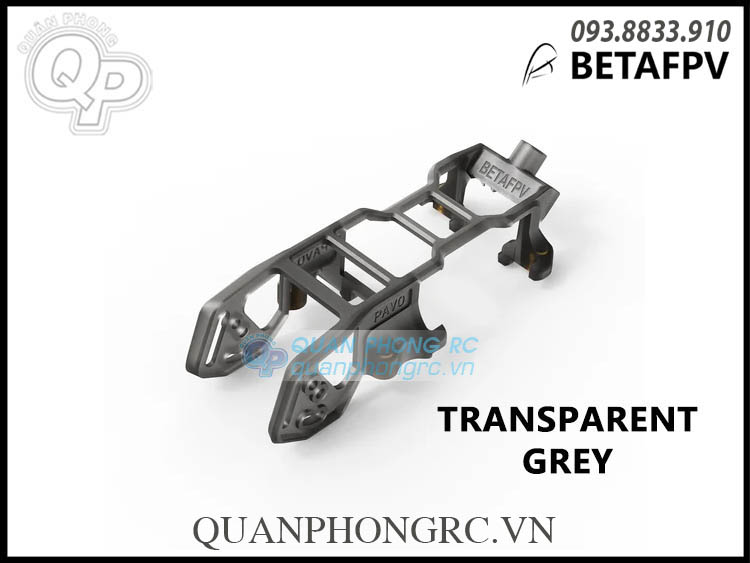

• Color: Black/Transparent Grey/Blue

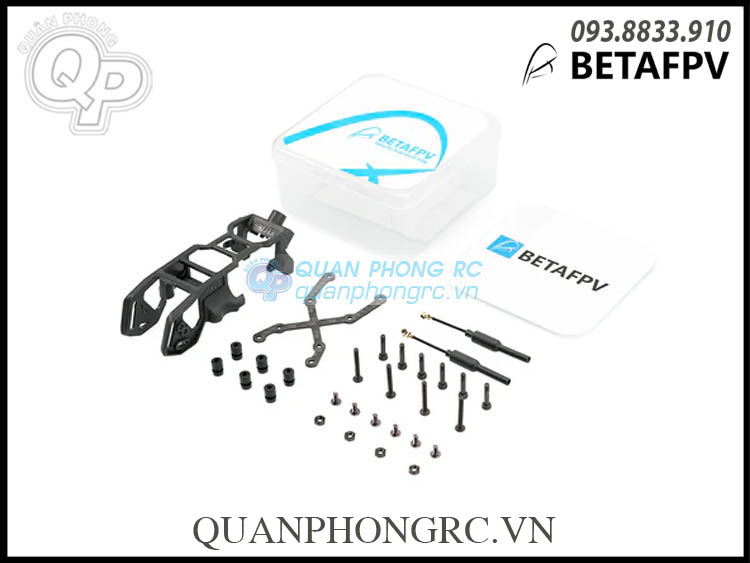

Package

• 1 * Pavo20 Pro VTX Bracket
• 1 * 20*20mm VTX Mounting Plate
• 2 * 5.8g Antenna
• 4 * M2 Nut
• 6 * Rubber Damper
• 6 * M2*10 Screws
• 6 * M2*4 Screws
• 4 * M2*15 Screws

Full Frame Kit:
