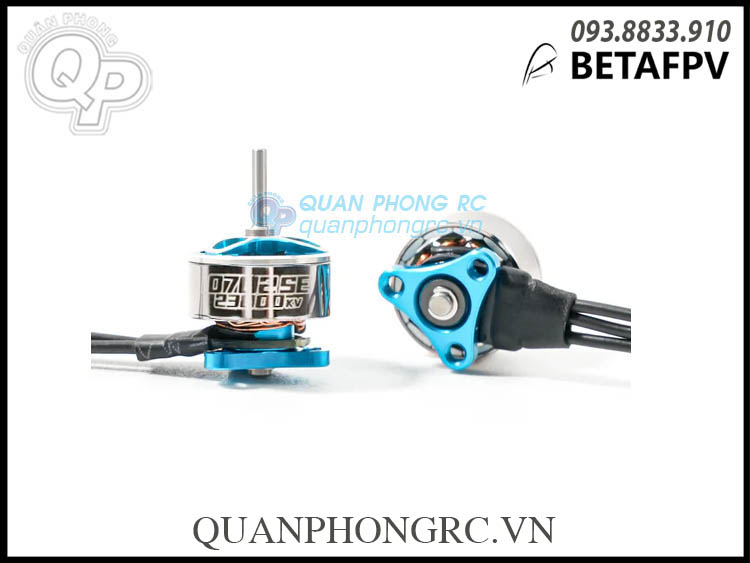

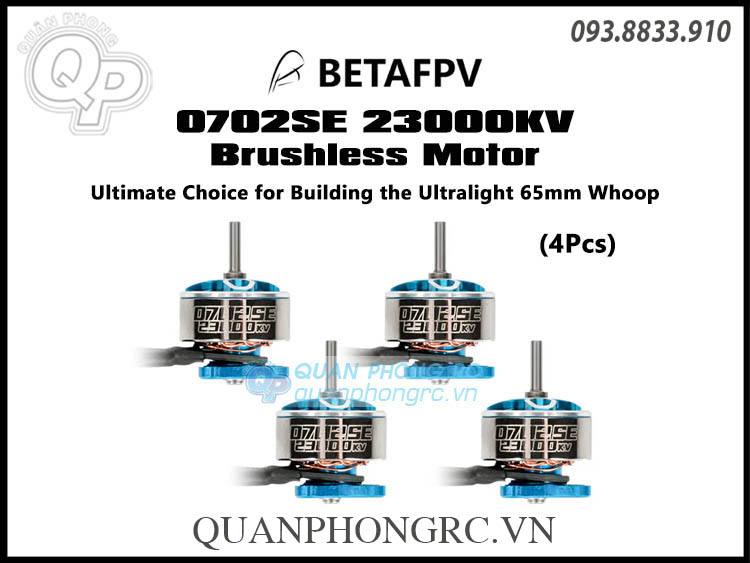

BETAFPV 0702SE 23000KV Brushless Motors (4 Pcs)

BETAFPV 0702SE 23000KV Brushless Motors (4 Pcs)

Lightweight 65mm whoop drones are becoming popular among racing enthusiasts. As the lightest motors available on the market, our 0702 and 0702SE only weigh in at just 1.52g and 1.42g. Paired with Gemfan 1210 2-blade or 1208 3-blade Propellers and PEEK screws to further reduce weight to less than 18g with these lightweight components, providing superior flight performance. Perfect for 65mm whoop drones, it is the perfect choice for pilots who are looking to take their Whoop racing to the next level and stand out from the competition.

Bullet Point

• These motors are customization designs for the ultra-lightweight 65mm racing drone, featuring unparalleled performance in extreme racing flight.

• The 0702SE motor features brass bushings, making it both lightweight at 1.42g, or 1.35g without a connector and highly efficient. This more affordable and durable motor is the perfect choice for extremely lightweight installations.
• The truth is that for all speeds of 0702 motors, there is a 603 or 802 size motor that can achieve the same thrust with greater efficiency, the 0702 is favored by active FPV pilots for its ability to reduce weight away from the aircraft's center of gravity. The brass-bushed 0702SE motor is a reliable and cost-effective choice for these pilots.
• Paired with The PEEK screws only weighing 0.10 grams/12pcs, it can save up to 0.46 grams for a build. With more heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK screws are both reliable and durable.
• Paired with the ultra-light Gemfan 1210 2-blade or Gemfan 1208 3-blade propellers, ensures robust power output and unparalleled responsiveness, perfect for racing and freestyle flight. Meet various needs of the lightweight whoop drone installation.

Specification

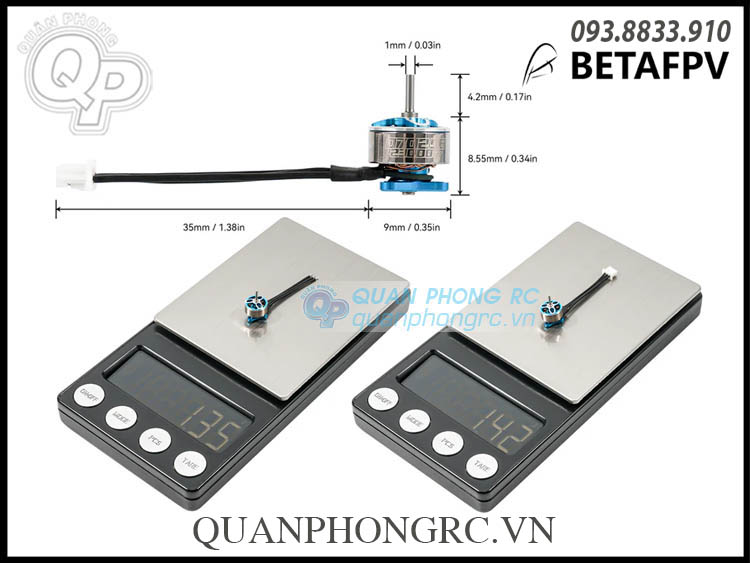

The picture below is the diagram of the 0702SE motor.

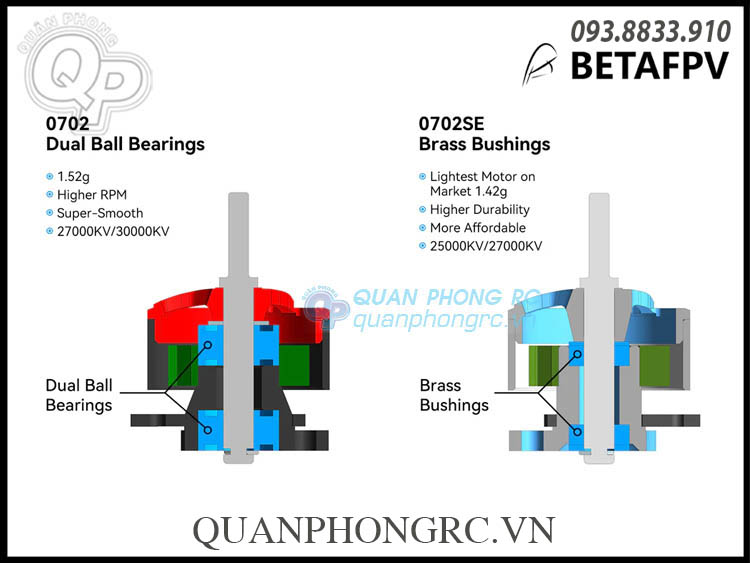

0702 and 0702SE Motors

Selecting the appropriate bearing for your whoop drones is crucial for achieving optimal performance and longevity. Brass bushings, being lightweight, are a cost-effective and durable choice for situations where crashes are more likely to occur. Conversely, dual ball bearings provide smoother operation, better high-speed performance, and a longer lifespan for your motor. By utilizing dual ball bearings, you can ensure your motor remains in its prime condition for an extended period while maintaining its high-level performance.

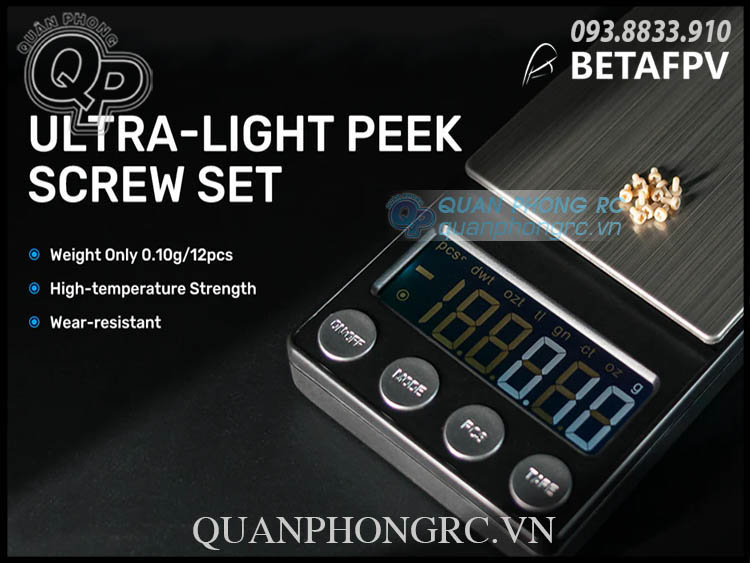

PEEK Screws

PEEK Screws is the ultimate solution for lightweight whoop, taking more grams off the build. PEEK screws only weigh 0.10 grams/12pcs, it can save up to 0.46 grams for a build that is using metal screws, while still being stronger and more durable than nylon screws. With more heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK Screws are both reliable and durable. They are perfect for building 65mm/75mm size drones, including the lightweight Meteor series drone.

Note: when tightening the screw, it is important to pay attention to the tightening force to prevent the nut from breaking.

Propellers

For racing drones that require nimble and quick flight performance, the 1208 31mm 3-blade propeller is a suitable choice to pair with a 0702 motor that has a value of either 27000KV or 30000KV. Alternatively, for freestyle drones that prioritize acrobatic maneuvers, the 1210 31mm 2-blade propeller is better suited for a 0702 motor with a value of 25000KV or 27000KV. The selection of appropriate propellers and motors is crucial to optimizing the flight performance of a racing drone, and can greatly enhance the overall racing experience for pilots.

Recommended Parts

• Propellers: GF 1210 2B Props, GF 1208 3B Props, HQ 31mm 3B Props, GF 1219S 3B Props

• Frame: Meteor65 frame, Meteor65 Pro frame

• FC: F4 1S 5A AIO Brushless Flight Controller

• Battery: BT2.0 300mAh 1S 30C Battery (8PCS)

• Screws: Meteor Series Motor Fixing Screws Pack

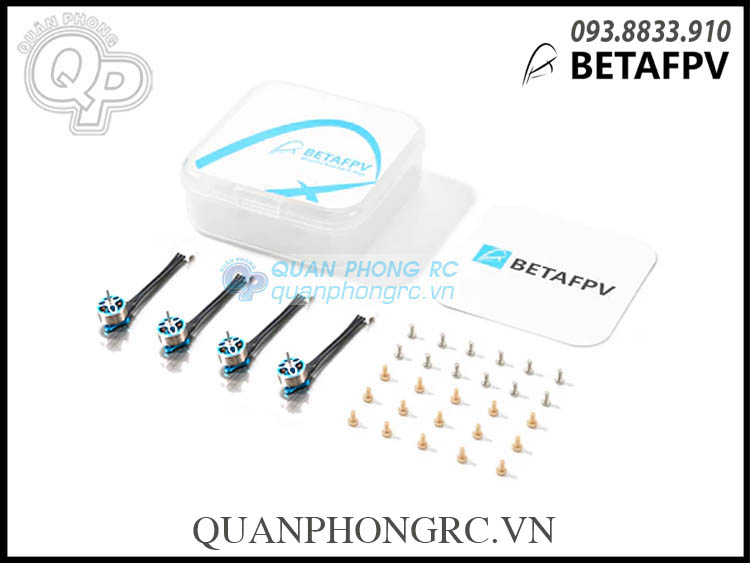

Package

• 4 * 0702SE brushless motor
• 15 * M1.4*3 PEEK screws
• 12 * M1.4*3 metal screws
